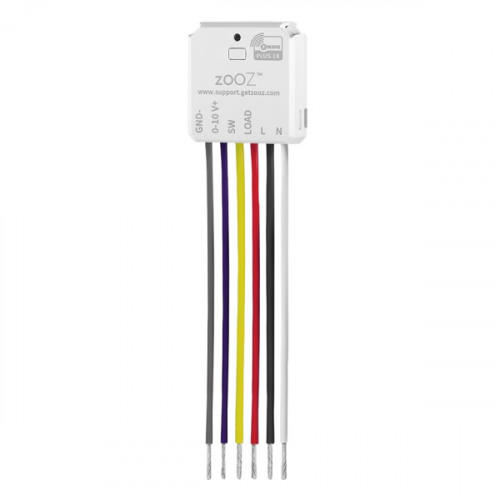

Zooz Zwave 700 Long Range 0-10V Dimmer Module

The Zooz 700 Series Z-Wave Long Range 0-10V Dimmer Module transforms 0-10V dimming drivers (up to 4A) into a full-range wireless Z-Wave dimmer controllable through your favourite Z-Wave equipped smart hub. Advanced settings let you customize everything from minimum and maximum brightness, fade and taper rate, etc. (with supported hubs).

Advanced security settings like S2 authentication keeps your connected devices secure, and the simplified SmartStart setup makes secure initialization a breeze for any level of end-user. Backed by a 5 year manufacturer's warranty and lifetime tech support. Built-in Z-Wave 700 repeater also strengthens your home network automatically, making all other connected Z-Wave devices stronger and more reliable. Z-Wave Long Distance transmission allows users with LR-capable Z-Wave networks to wirelessly control connected loads up to a maximum of 1300 feet away (line-of-sight).

PLEASE NOTE: This product is designed to work with a 0-10V LED driver, do NOT use with 120V lighting directly. Line and load wires cannot be swapped and must be installed exactly as indicated; profession installation by an electrician is required. Neutral wire required. Indoor use only. Confirm your hub compatibility before purchasing.

ZEN54 LR Specs and Features

• Power: 120-240 VAC, 50/60 Hz
• Maximum Loads: 4 A, 480W at 120V, 960 W at 240V
• Maximum A rating: 200 mA
• Z-Wave Range: Up to 300 feet line of sight or up to a mile with Long Range enabled)
• Dimensions: 1.5" tall, 1.4" wide, 0.7" deep
• Operating Temperature: 32-104° F (0-40° C)
• Installation: Indoor use only
• Works With:
  • Z-Box Hub
  • Ezlo Plus (no access to advanced parameters on Android app)
  • Ezlo Secure (no access to advanced parameters on Android app)
  • Home Assistant (Z-Wave JS)
  • HomeSeer (with Z-Wave Plus plug-in)
  • Hubitat (custom driver needed)
  • SmartThings (Edge driver needed, see here)
  • Vera
