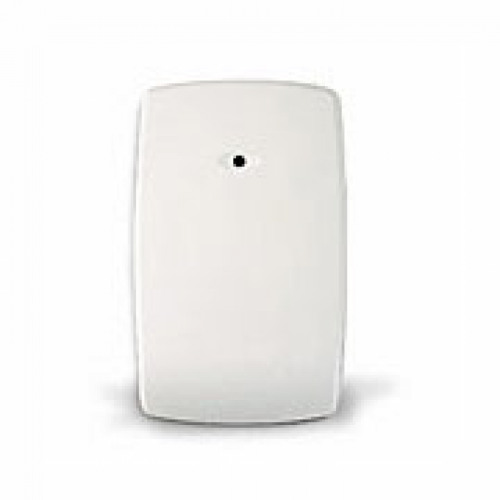

Honeywell Surface Mount Wired Glass Break Detector

The FG-1625 Glassbreak Detector can quickly provide a response to broken glass with 7.6 meters of the device. It can detect x all glass types, including plate, tempered, laminated, wired, film-coated, and sealed insulating glass.

FLEXCORE SIGNAL PROCESSOR

This detector uses FlexCore Signal Processing as an Application-Specific Integrated Circuit (ASIC) to process sound data, allowing for faster, more accurate detection and increased false-alarm protection.

EASY INSTALLATION

This Honeywell detector is easy to install and features a test mode that allows for remote activation. The FG-1625 has a centred wire entry hole, 45° terminal blocks and EOL terminals. A simple hand-clap feature verifies that the detector is functioning.

SELECTABLE SENSITIVITY

The two DIP switches built into the detector ensure it is easy to set up the sensitivity to match the acoustics of any room. The four different sensitivity levels range from very low to high. The range can be verified remotely using test mode.

FLEXIBLE MOUNTING

The detector can easily be mounted to any wall, window frame or ceiling as long as it is within 7.6 m of the glass. It can be mounted to the opposite wall, adjoining wall, ceiling, or same wall as the glass.

MULTIPLE DOMAIN SIGNAL ANALYSIS

The FG-1625 can perform Multiple Domain Signal Analysis where time, frequency and amplitude characteristics are monitored for signal qualification. This enables the detector to discern false alarms from actual glass-breaking events accurately.

Honeywell FG-1625 Glassbreak Detector Features:

• Form A Relay when not powered.  Normally Closed output when powered and not in alarm.  Opens when in alarm.
• Uses FlexCore Signal Processor, which allows for faster, more accurate detection
• Easy installation and setup
• Selectable sensitivity
• Mount the detector on any wall, window frame, or ceiling - can be mounted on the ceiling, opposite wall, adjoining wall, or the same wall
• Maximum detection range of 7.6 m
• Covers all glass types, including plate, tempered, laminated, wired, film-coated, and sealed insulating glass
• Multiple domain signal analysis
• Enclosed PC board
• Remote test mode
• Built-in increased false alarm immunity
